Twin Leg
Energy-Absorbing
Polyester Lanyard
310
Product Details
Safety Direct's energy-absorbing lanyards, also known as shock-absorbing lanyards, are used to connect the worker to a secure anchor point. The snap hook nearest to the energy absorber attaches to the dorsal (back) D-ring of the harness and the other connects to the anchor point.
FEATURES:
-
310 energy absorber
-
Twin leg for 100% tie-off
-
Clear heat shrink tubing protects the label and enables inspection of the energy absorber
-
Available with snap, ladder or scaffold hook connectors
-
Available in fixed or adjustable 3ft, 4ft, 5ft and 6ft lengths
-
Customizable (webbing color, ID/Name inside shrink tube)
SPECIFICATIONS:
-
1 3/4 inch (45 mm) woven polyester webbing with (Minimum tensile strength of 5000 lbs. 23 kN)
-
Snap and scaffold hook minimum break load 5000 lbs. (23 kN) and gate rating of 3600 lbs. (16 kN)
-
Maximum deployment length is 11.3 ft. (3.5 m)
-
Maximum free fall distance CANNOT exceed 6 ft. (1.8 m)
-
Maximum capacity including clothing and equipment must be at least 110 Lbs. (50 kg) and not exceed 310 Lbs. (140 kg)
-
Certified to CSA Z259.11-17
​
Part Numbers: Snap​
LY1M8P00S00S36D0
3ft, fixed length, snap hooks
​
LY1M8P00S00S48D0
4ft, fixed length, snap hooks
​
LY1M8P00S00S60D0
5ft, fixed length, snap hooks
​
LY1M8P00S00S72D0
6ft, fixed length, snap hooks
​
LY3M8P00S00S36D0
3ft, adjustable, snap hooks
​
LY3M8P00S00S48D0
4ft, adjustable, snap hooks
​
LY3M8P00S00S60D0
5ft, adjustable, snap hooks
​
LY3M8P00S00S72D0
6ft, adjustable, snap hooks
Part Numbers: Snap/Ladder​
LY1P8P00F01F36B0
3ft, fixed length, snap/ladder hook
​
LY1P8P00F01F48B0
4ft, fixed length, snap/ladder hook
​
LY1P8P00F01F60B0
5ft, fixed length, snap/ladder hook
​
LY1P8P00F01F72B0
6ft, fixed length, snap/ladder hook
​
LY3P8P00F01F36B0
3ft, adjustable, snap/ladder hook
​
LY3P8P00F01F48B0
4ft, adjustable, snap/ladder hook
​
LY3P8P00F01F60B0
5ft, adjustable, snap/ladder hook
​

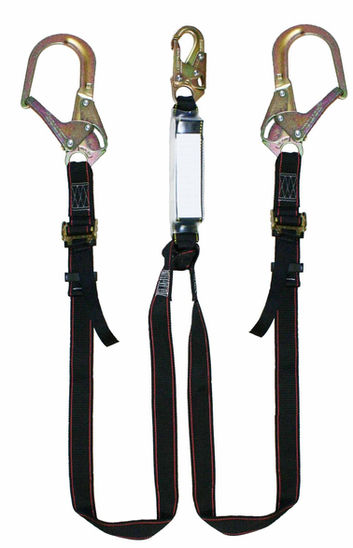

LY3P8P00F01F72B0
6ft, adjustable, snap/ladder hook
Part Numbers: Snap/Scaffold​
LY1M8P00S02S36D0
3ft, fixed length, snap/scaffold hook
​
LY1M8P00S02S48D0
4ft, fixed length, snap/scaffold hook
​
LY1M8P00S02S60D0
5ft, fixed length, snap/scaffold hook
​
LY1M8P00S02S72D0
6ft, fixed length, snap/scaffold hook
​
LY3M8P00S02S36D0
3ft, adjustable, snap/scaffold hook
​
LY3M8P00S02S48D0
4ft, adjustable, snap/scaffold hook
​
LY3M8P00S02S60D0
5ft, adjustable, snap/scaffold hook
​
LY3M8P00S02S72D0
6ft, adjustable, snap/scaffold hook
